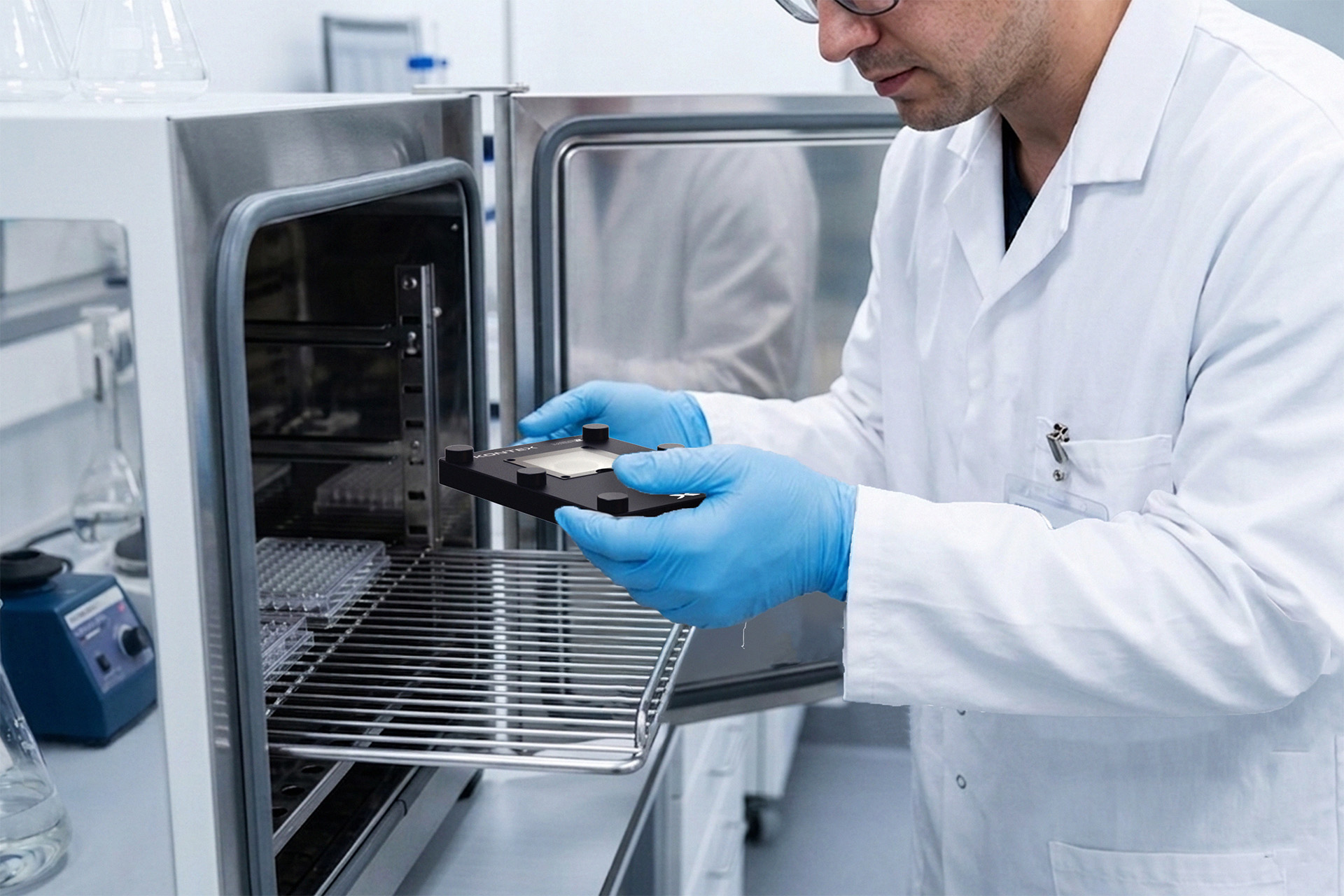

Engineered for reliable operation within humid, temperature-controlled incubating chambers.

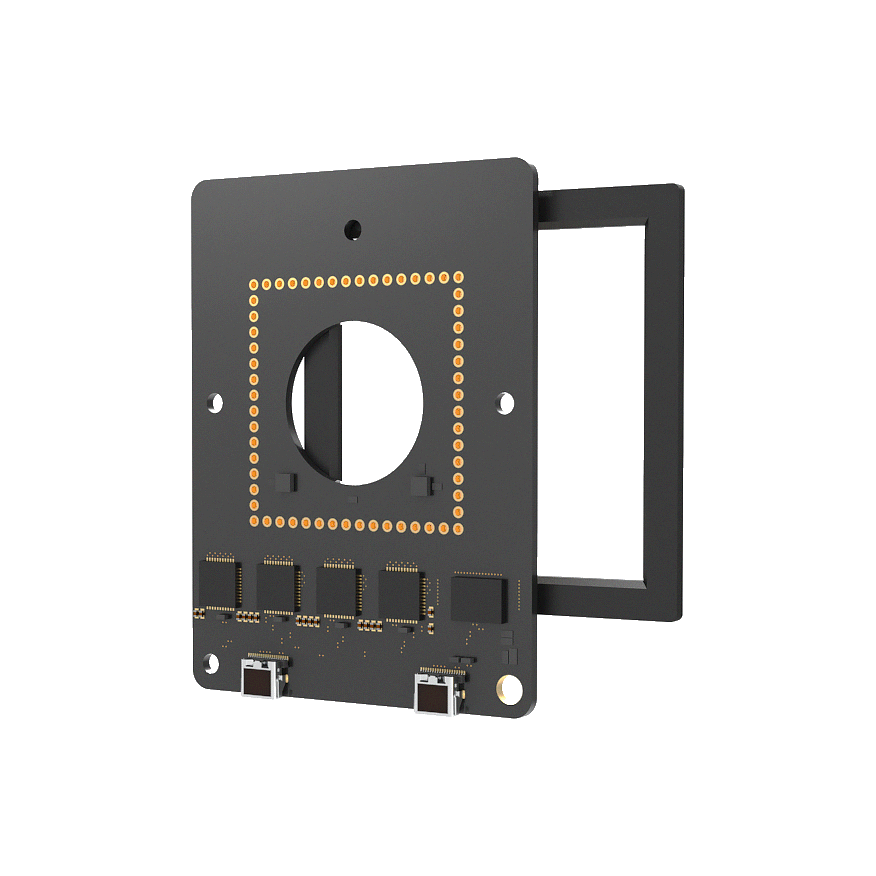

Minimizes electrical noise and interference to deliver the highest possible signal quality.

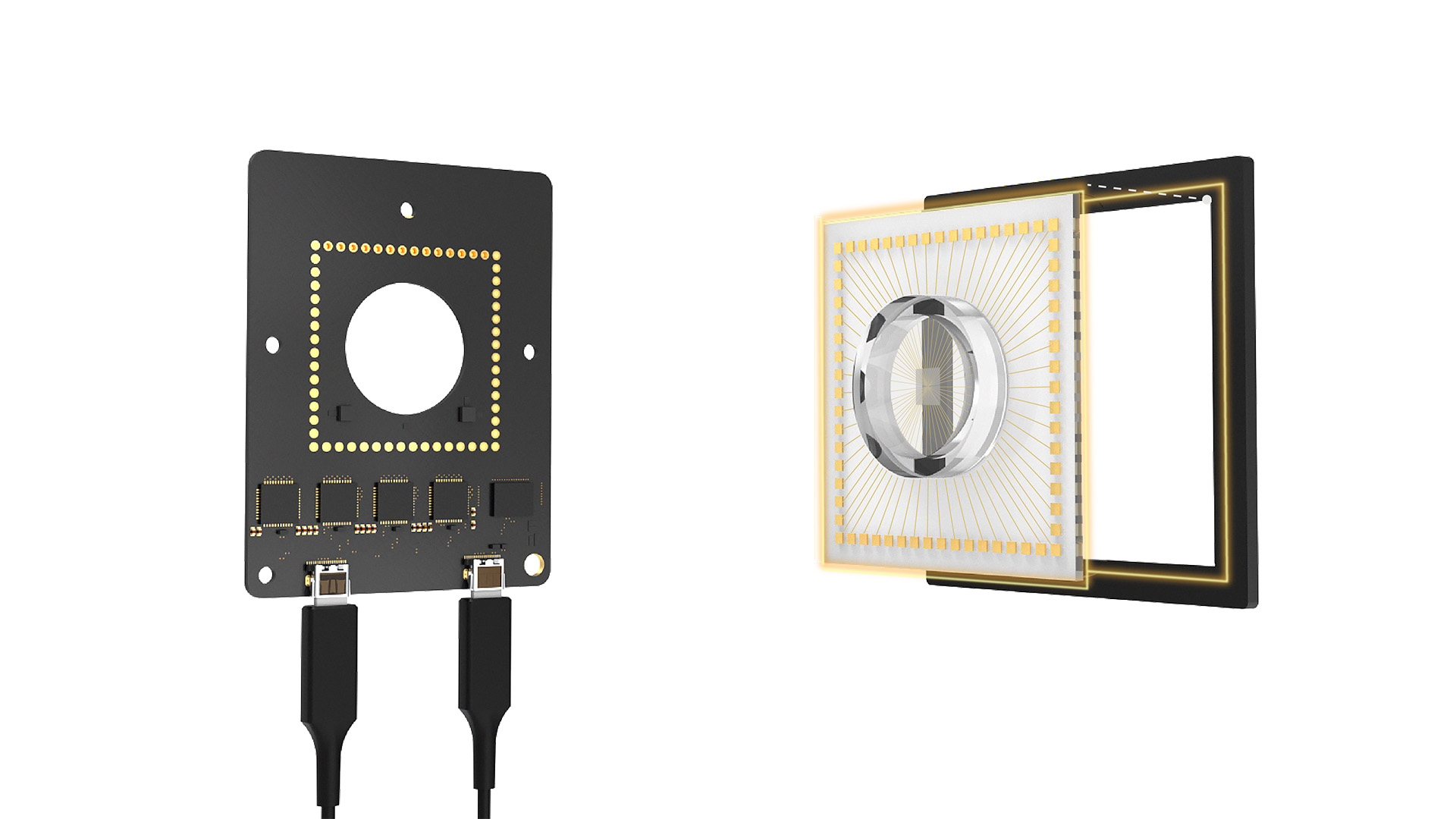

Ensures accurate, repeatable alignment and seamless compatibility with MEAs from leading commercial vendors.
Integrated backside window allows concurrent microscopic inspection and imaging during experiments.
.jpg)

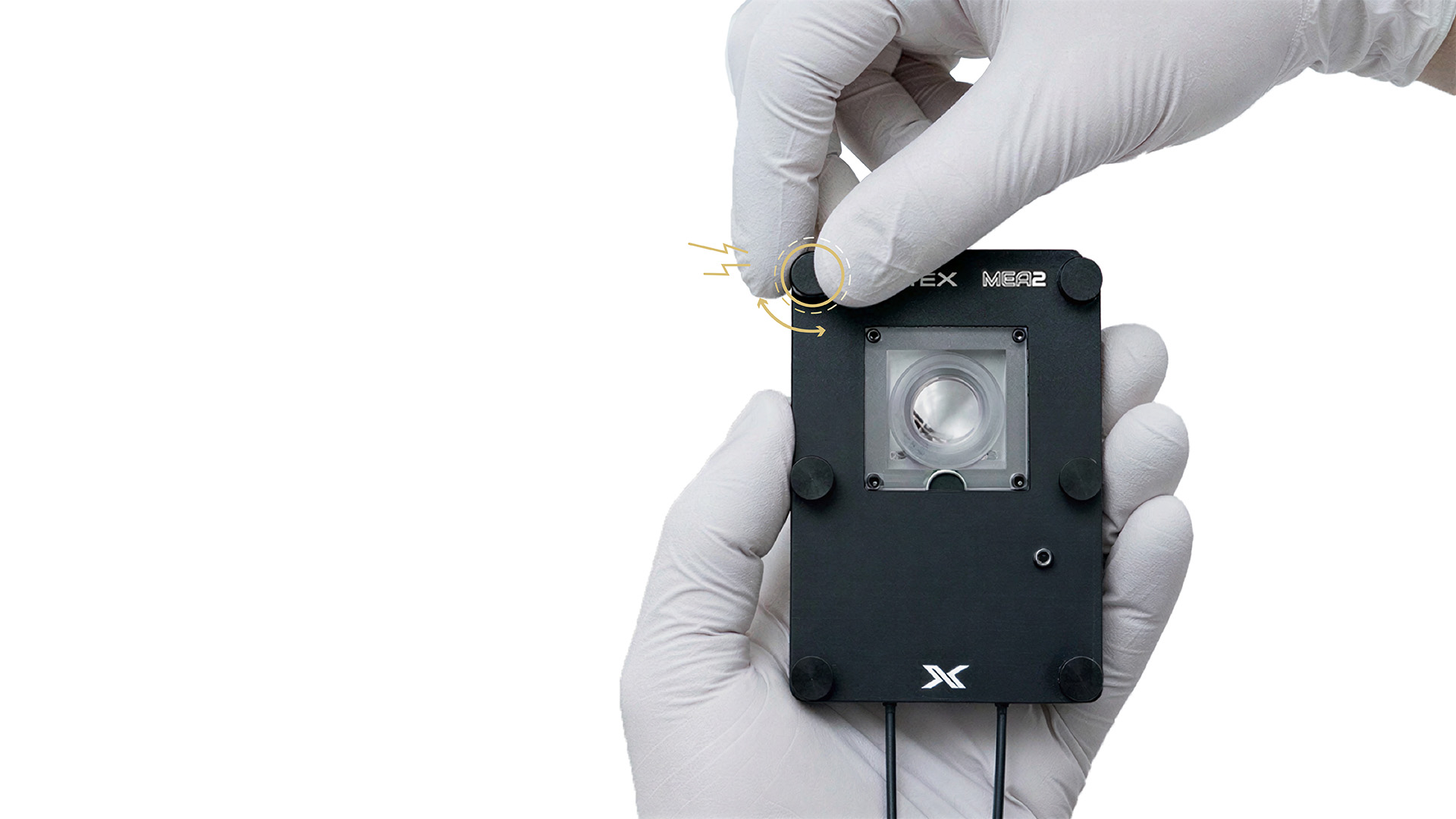

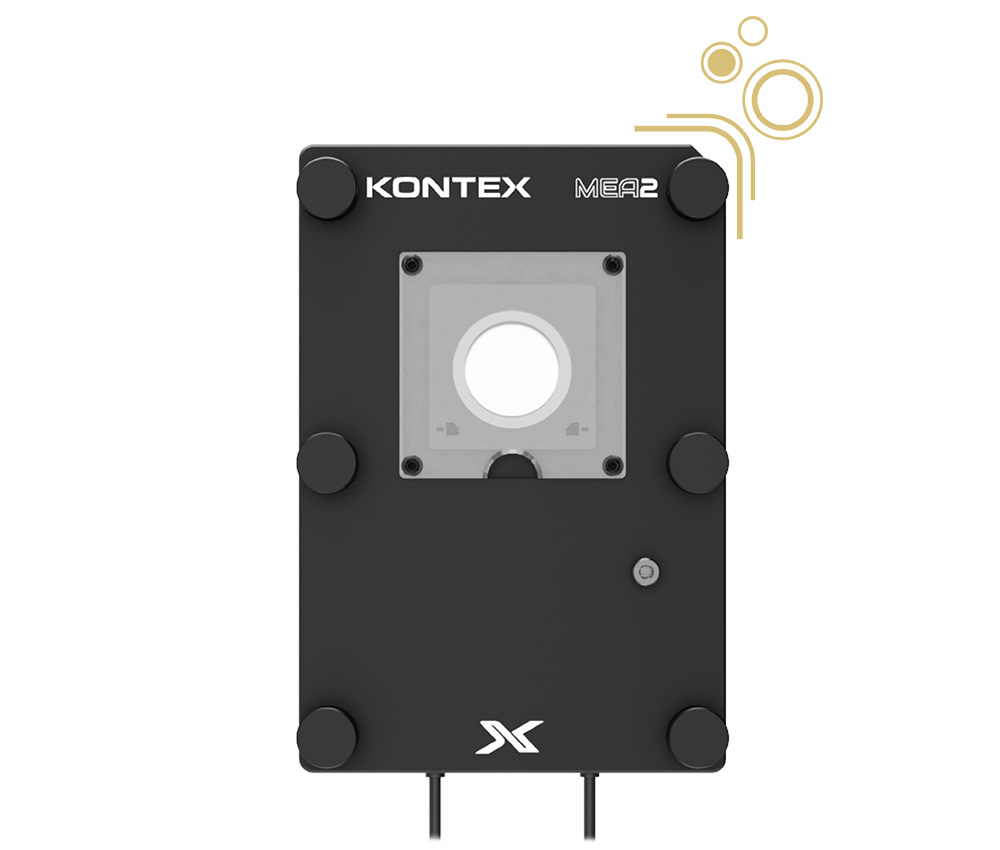

Once the headstage is installed, routine access to the MEA electrode is fast and tool-free using the captive screws.

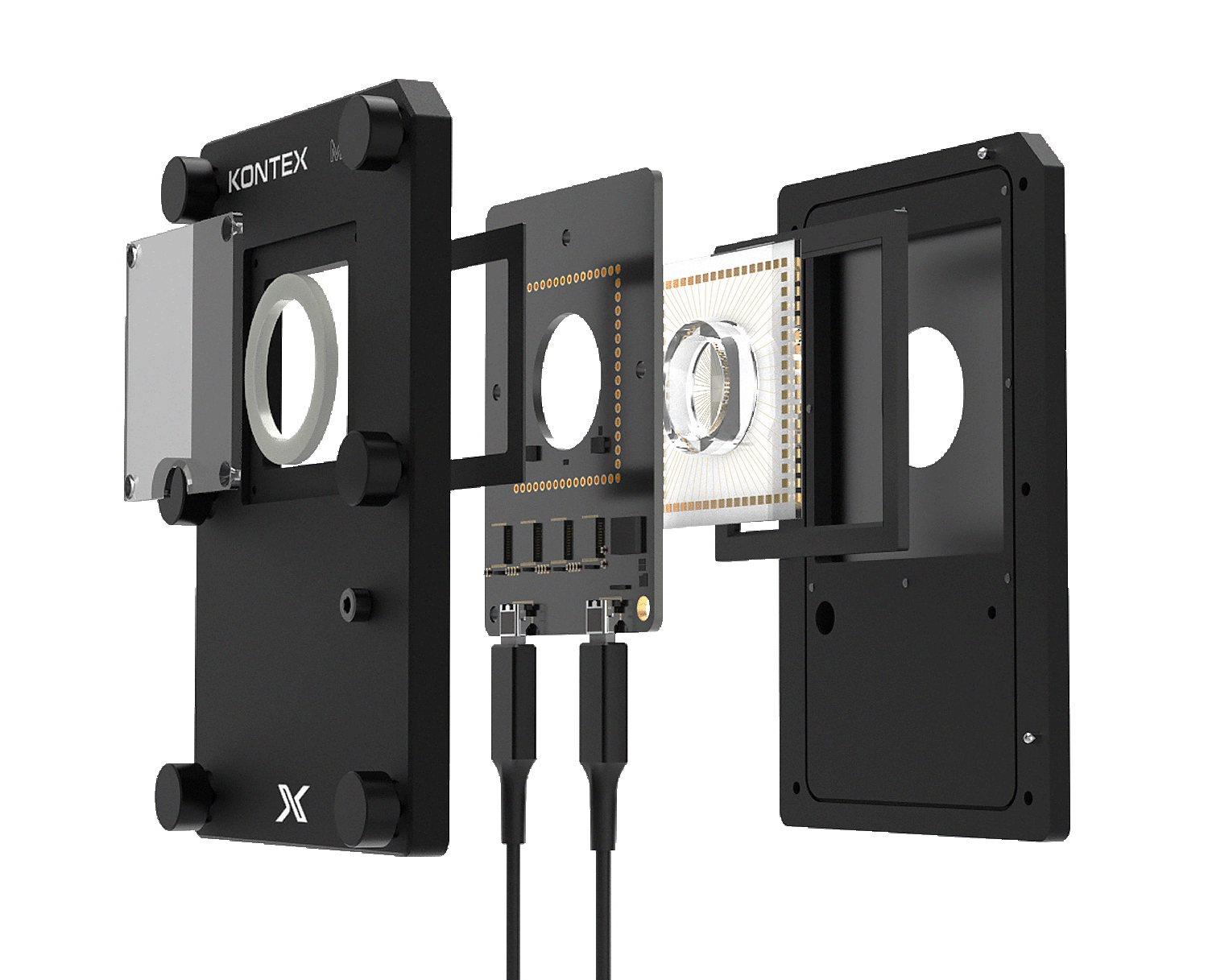

A precision silicone gasket helps block moisture intrusion and protect electronic components from humidity damage.

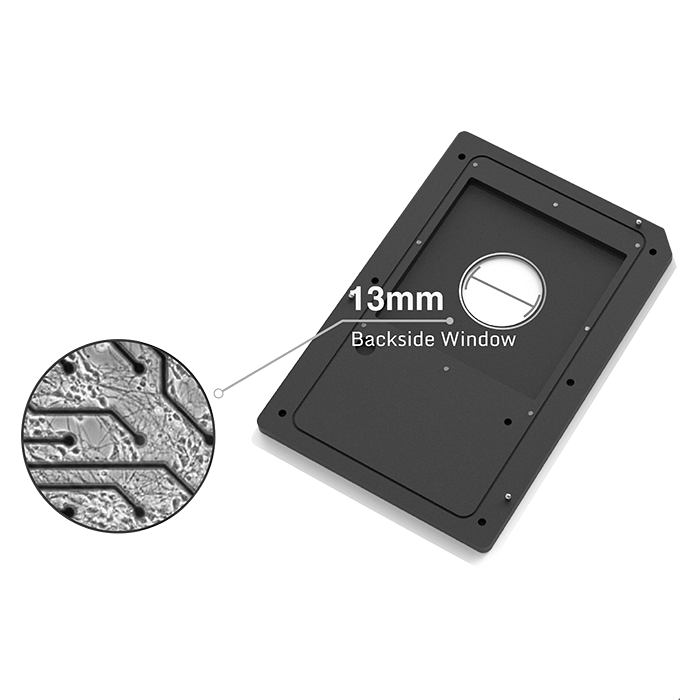

Integrated 13mm window allows concurrent microscopic inspection and imaging during experiments.
Once the headstage is installed, routine access to the MEA electrode is fast and tool-free using the captive screws.

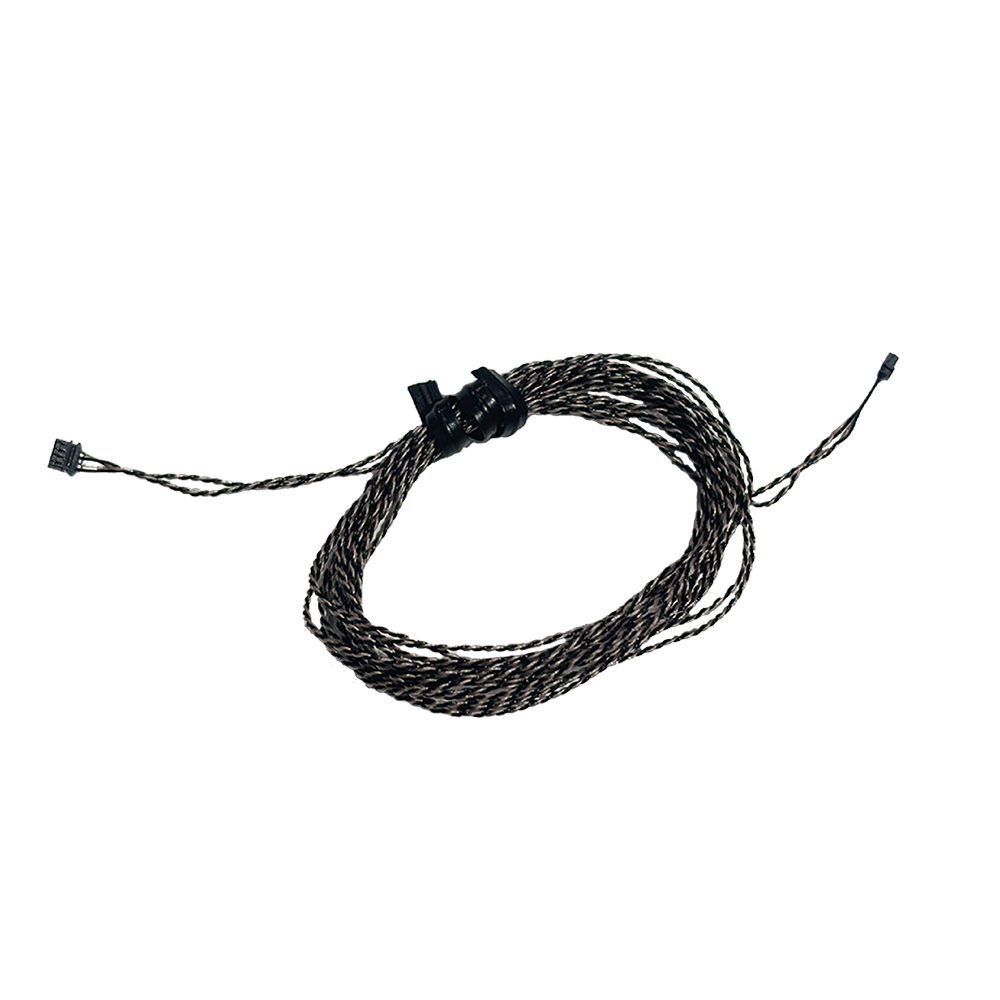

Screw Clip- Suitable for cable meters ranging from 0.6mm to 2.5mm.
Cable Wrap- Suitable for cable meters ranging from 0.6mm to 1.5mm. Can be configured to mount horizontally to create a lever and potentially increase torque sensitivity.
Access node for upper and lower enclosure shielding.
.png)
Shielded ITO conductive glass enables in-situ tissue inspection.

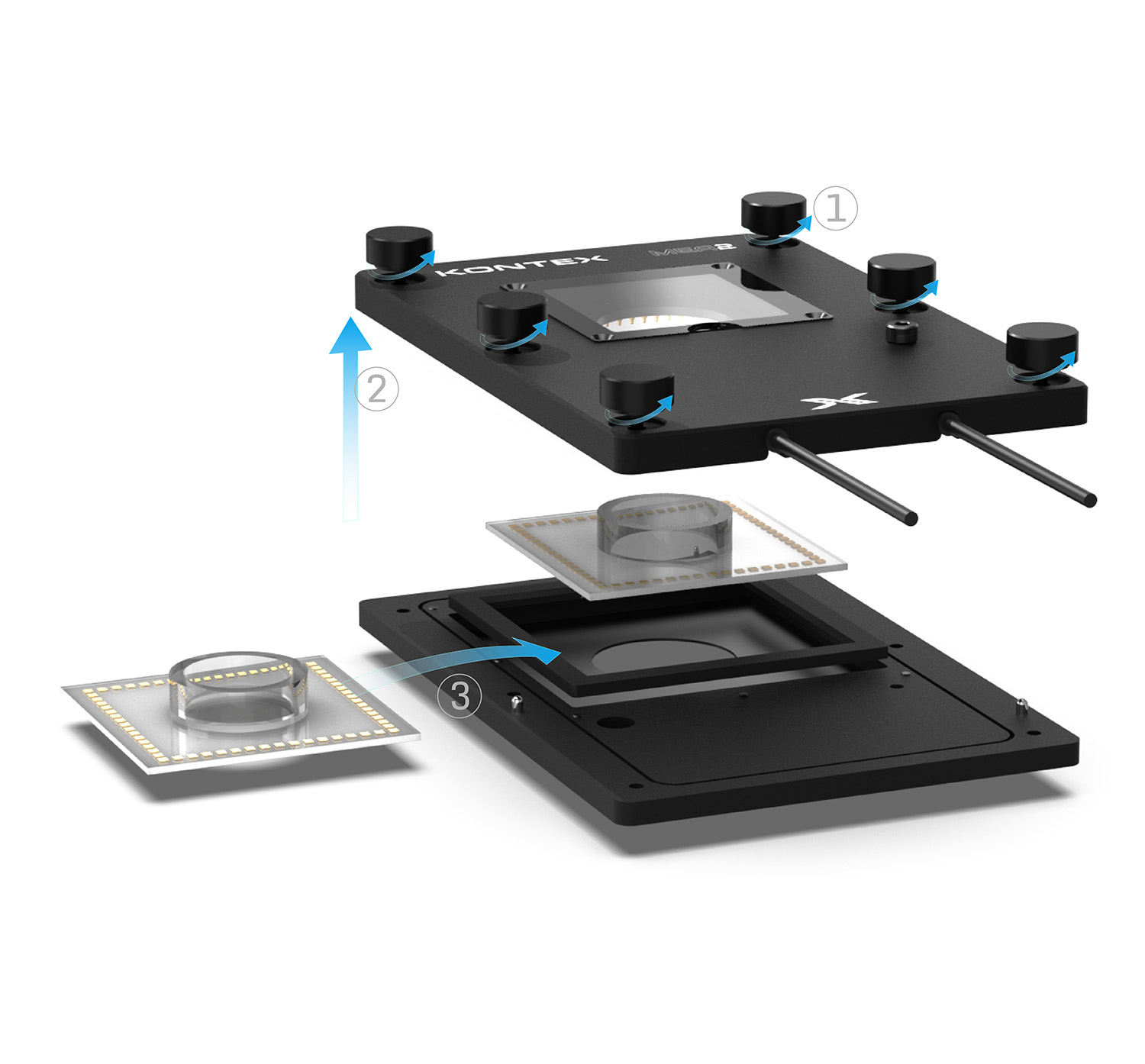

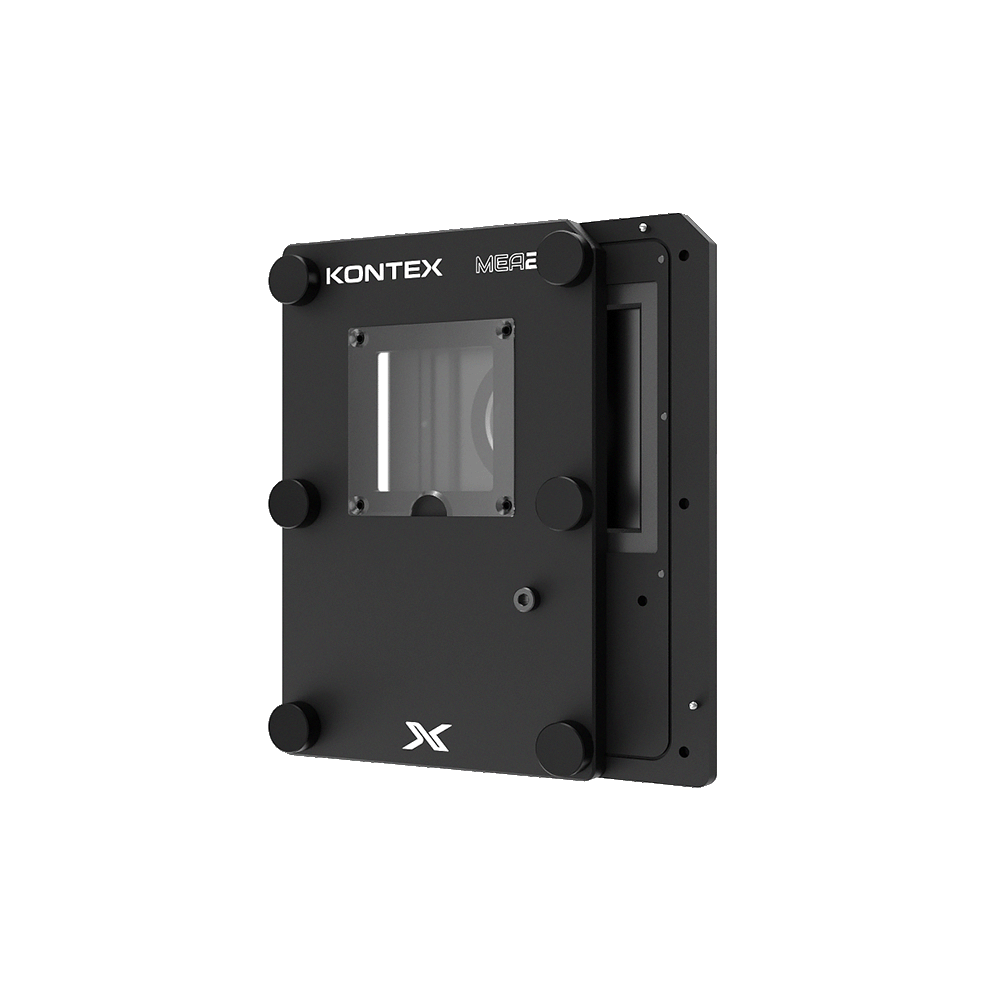

1. Unscrew the six captive screws.
2. Separate the top and bottom housings.
3. Remove and replace the MEA cup.
4. Reattach and secure the housings.
1. Neuropixel support (NP Mode) can be configured without XR Mode or XSR Mode for passive probes.
2. Number of animals monitored can be increased using Port Expander, which provide each animal monitored with independent and isolated ground circuit.

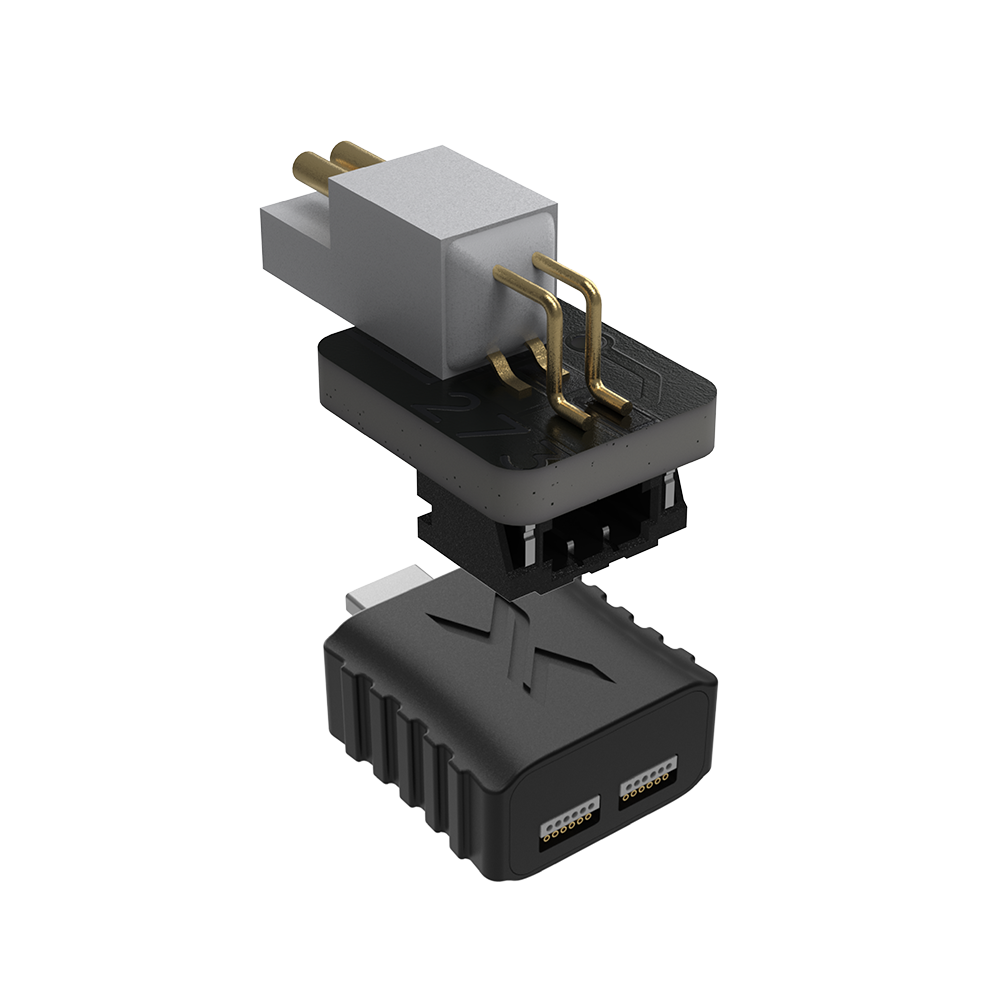

3. Adpt-SR64 adapter is required to drive 64ch X3SR64 headstage.
4. IO Expander is required to increase the IO support.
5. Latency may vary with OS.
6. This product includes technology and knowhow developed by IMEC.
