Large Scale Electrophysiology

Large Scale Electrophysiology

High-throughput, parallel neural acquisition—designed to scale

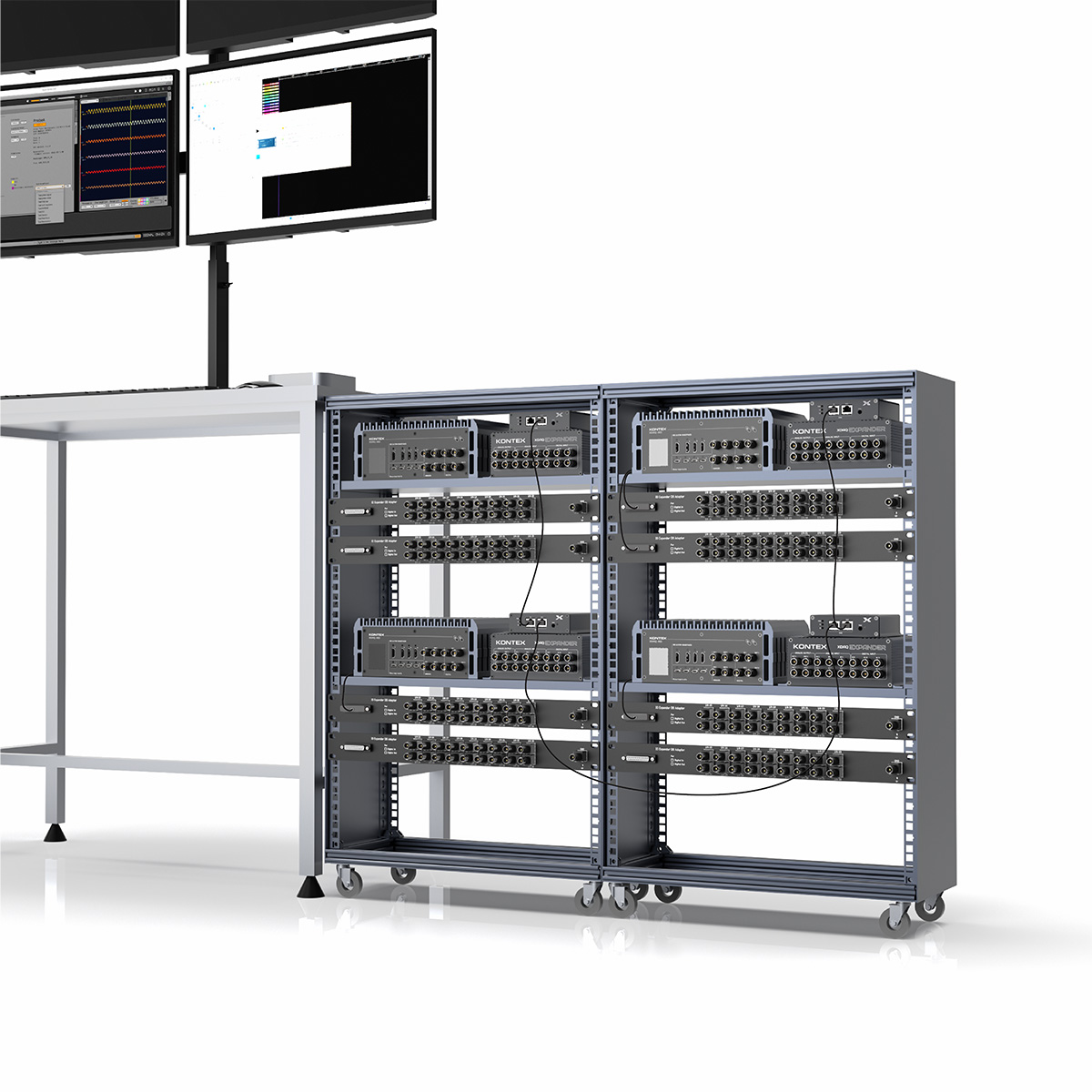

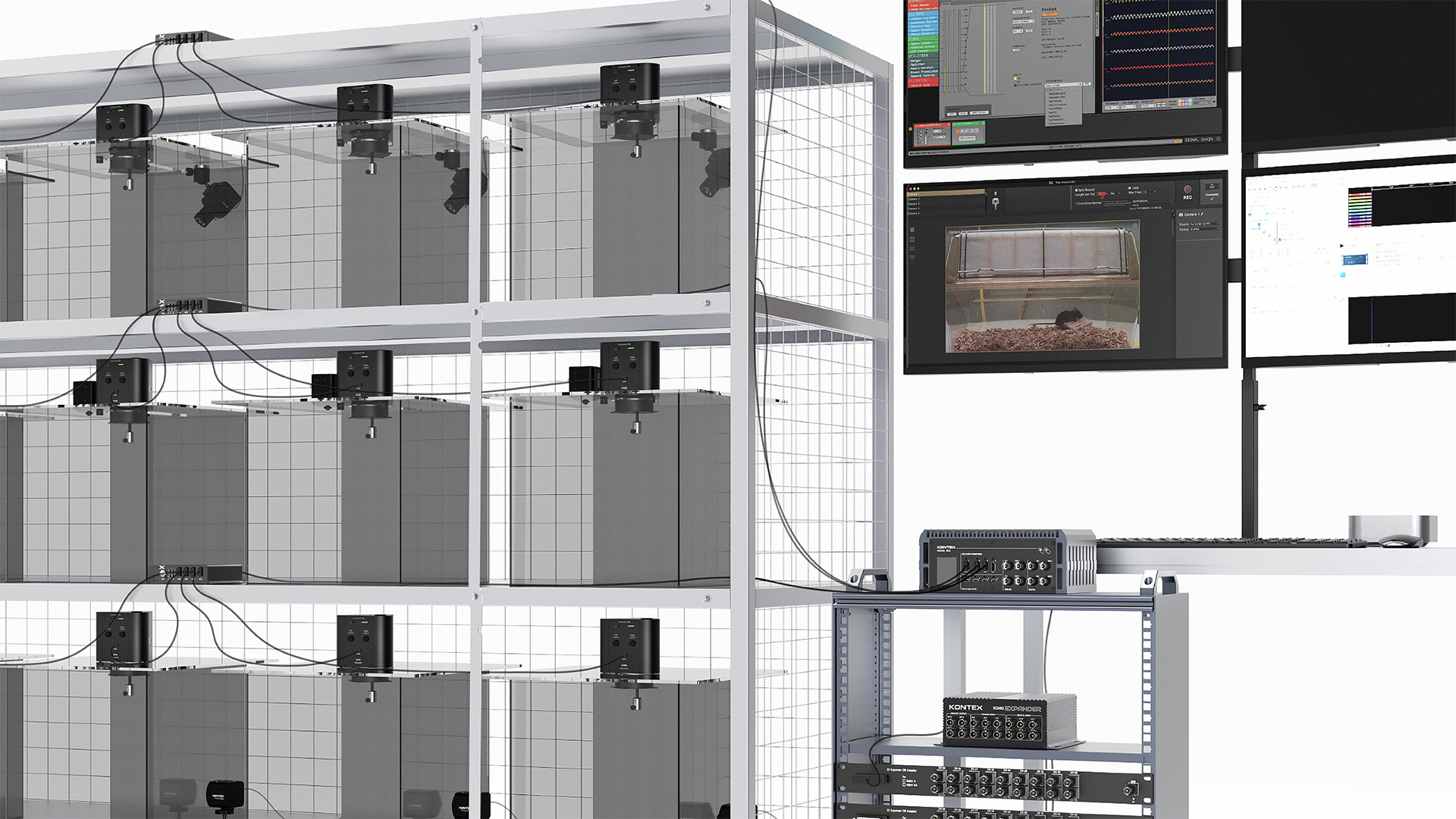

Scale your throughput at the animal end or acquisition end

Capture high-fidelity neural activity across thousands of channels or multiple animals. With integrated commutation, synchronized I/O, and modular XDAQ scalability, your experimental scale is defined by your scientific questions, not your hardware constraints.

Products

XDAQ AIO

The AIO is the top-tier XDAQ model, offering enhanced out-of-the-box support for advanced capabilities such as optogenetics and synchronized multichannel video capture, meeting the demands of modern neuroscience research.

XDAQ ONE+

The XDAQ ONE+ is an all-new, redesigned DAQ powerhouse, offering the highest capacity for recording, switchable stimulation, and Neuropixels experiments.

XDAQ™ Port Expander

This adapter allows each XDAQ HDMI port to drive up to four headstages, providing independent and isolated power and ground circuits for each.

XeR

The E-Series XeR line is a recording headstage designed for applications where size is not a primary concern, offering a more cost-effective option compared to the X3R line.

XeSR

The E-Series XeSR line is a stim-rec headstage designed for applications where size is not a primary concern, offering a more cost-effective option compared to the X3SR line.

IO Expander

The IO Expander extends the XDAQ I/O capabilities with an additional 24 pairs of digital inputs and outputs, along with 6 pairs of wide-range ADC and DAC channels.

X3R

X3SR

X6R

The X6R line is KonteX’s high-channel-count X-Headstage, supporting 128 or more channels in a compact form factor approximately 1 cm square and only a few millimeters thick.

Standard Commutator HDMI

This is the passive commutator for KonteX's X-Headstages, compatible with both XR headstages (up to 256 channels) and XSR headstages (up to 32 channels).

Dual Mode Commutator PRO

HDMI Commutator PRO

Neuropixels Commutator PRO
